Thermal Convection


Simulation Parameters:
  • box [0,4]x[0,4]x[0,1] , Time=[0,900]
  • no slip boundary conditions at walls
  • temperature fixed at lower and upper wall at T= 000 , 000
  • viscosity=1e-5
  • Boussinesq approximation for temperature
  • grid: 65x65x20

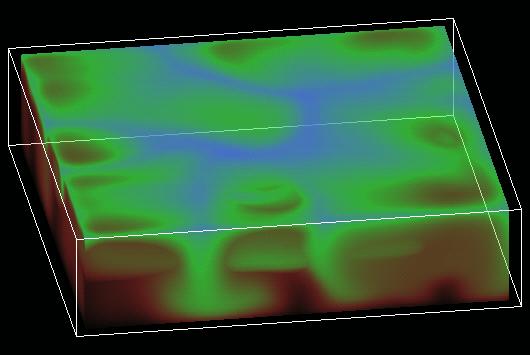

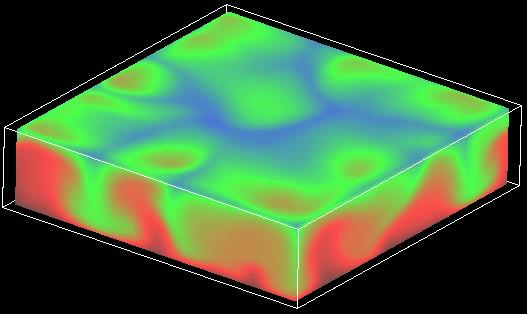

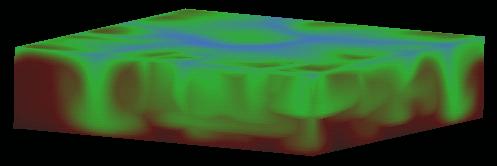

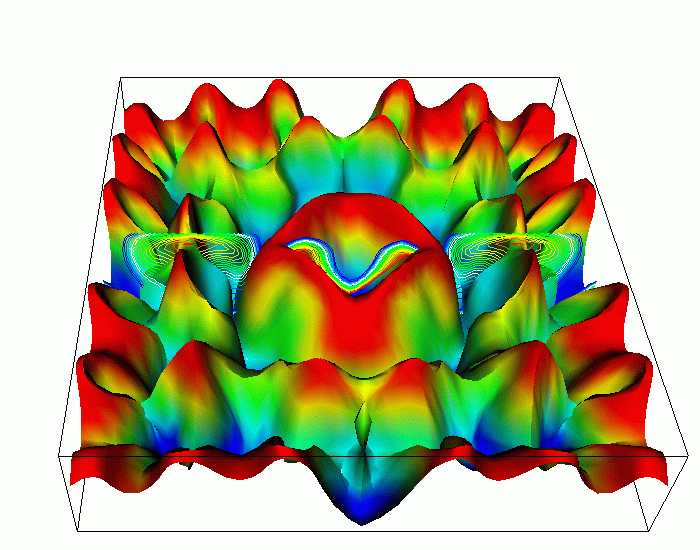

The visualization shows the magnitude of z-velocity (up and down) of the slice [0,4]x[0,4]x{0.5}. The color corresponds to the temperature of this slice.

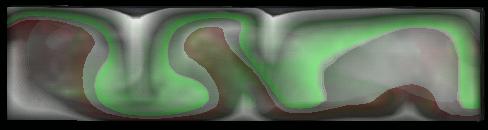

Click the image below to see the complete mpeg movie (2.9MB)
